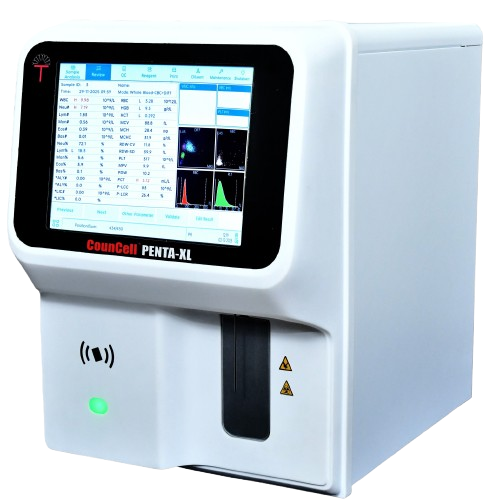

CounCell PENTA XL
An advanced 5-Part Hematology Analyzer meets the
operational needs of modern clinical laboratories. With its enhanced analytical
performance and superior precision, CounCell PENTA XL helps build confidence in
every count and supports high-quality diagnostic outcomes.
Features
• WBC & Differential by Flow Cytometry with Laser Scatter.
• RBC and PLT by Electrical Impedance.
• Hemoglobin by Cyanide-Free Colorimetric Method.
• 25 Reportable Parameters.
• 4 Research Use Only Parameters.
• 4 Scattergrams (WBC & Differential).
• 2 Histograms (RBC & PLT).
Technical Details
| Sample Volume | 20 ?L |
| Throughput | 60 Samples per hour. |
| Reagents | 3 Routine reagents: Diluent, LH Lyse & Diff Lyse. |
| Various Mode of Operations | Venous whole blood CBC-DIFF mode. |
| Pre-diluted whole blood CBC-DIFF mode. | |
| Capillary whole blood CBC-DIFF mode. | |
| 3 Calibration Modes | Manual / Calibrator / Fresh Blood. |
| Quality Control | 2 QC Methods: L-J and X-B QC with appropriate QC charts. |
| Special Functions | One button error resolution capability. |
| Reagent reminder alarm with variable volume level and software reagent inventory management. | |
| Option to ADD microscopic parameter which can be printed along with sample report. | |
| Display | 10.4-inch colour display, Resolution 800*600. |
| Data Storage | 60,000 test results with Scattergram and Histogram. |
| Printer | In-built thermal printer/External printer connectivity -preloaded drivers. |
| Interface | 2 USB ports & 1 Network port-compatible with TCP / IP protocol. |
| Communication | Two-way LIS system supports HL7 protocol. |
| Power Requirement | 100V – 240VAC: 50/60Hz. |
| Operating Environment | Ambient Temperature (10°C?30°C) / Relative Humidity (?90%)/ Atmospheric Pressure (70kPa?106kPa). |
| Physical Specification | Width ? 330mm |
| Height ? 465mm | |
| Depth ? 466mm | |
| Weight (Kg) | ?30.5Kg |
